대량 주문 시 안정적인 회로 보호를 위한 도매 전기 드롭아웃 퓨즈

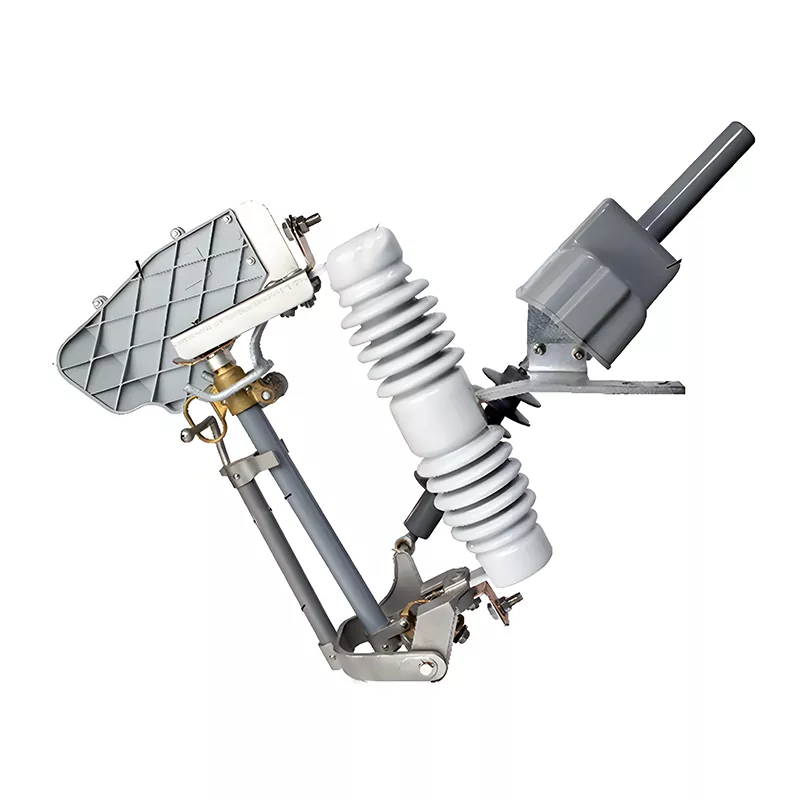

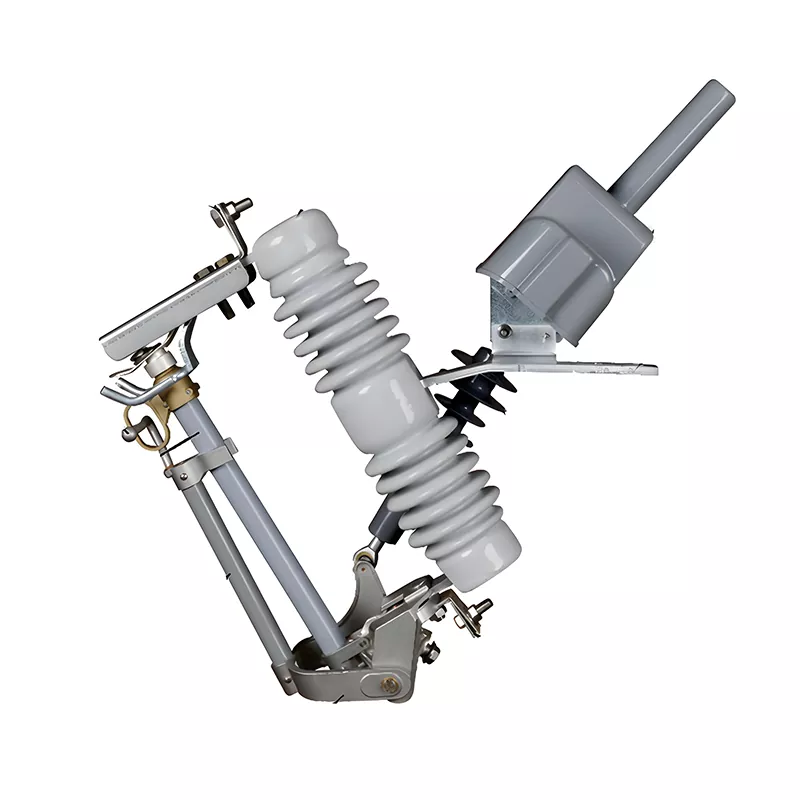

The Huajidian Electric Drop-out Fuse is an outdoor overcurrent protection device designed for overhead distribution lines operating at 6kV to 33kV. Featuring a high-insulation polymer or porcelain housing and an automatic drop-out fault indication mechanism, the fuse complies with international IEC standards and provides reliable protection for power distribution networks.

As a professional electrical equipment supplier, Huajidian sources its drop-out fuses from a certified manufacturing facility in Yueqing, China. Every product undergoes comprehensive factory acceptance testing (FAT) and is supplied with complete certification documentation and global after-sales support. The product is widely used by utility companies, EPC contractors, and power distribution projects across Southeast Asia, the Middle East, Africa, and North America.

Key Product Specifications

• Rated Voltage: 10kV / 15kV / 24kV / 33kV (customized options available)
• Breaking Capacity: 8kA–20kA short-circuit current
• Insulator Material: UV-resistant polymer insulator (porcelain optional)
• Standards & Certifications: IEC 60265, CE, IECEx, with support for SABER (Saudi Arabia) and SNI (Indonesia) certification
• Applications: Overhead distribution lines, pole-mounted transformers, rural power grids, mining distribution systems, agricultural substations, and photovoltaic power networks

Core Product Advantages

Fast Arc Extinguishing for Reliable Fault Protection

The fuse tube utilizes an efficient gas-generated arc extinguishing system that interrupts fault currents within approximately 0.2 seconds. Rapid fault isolation minimizes damage to downstream electrical equipment and improves overall system reliability.

Visible Drop-Out Design for Easy Fault Identification

The automatic gravity-operated drop-out mechanism creates a clearly visible open circuit after fuse operation, allowing maintenance personnel to quickly identify fault locations while improving operational safety during inspection and maintenance.

Designed for Harsh Outdoor Environments

Manufactured with corrosion-resistant metal components and high-performance insulating materials, the fuse operates reliably in temperatures ranging from -30°C to +60°C. Optional silicone-coated polymer insulators provide excellent resistance to pollution, UV exposure, humidity, and coastal salt spray conditions.

Flexible Configuration and OEM Customization

Multiple fuse current ratings are available to match transformers of different capacities. Huajidian also provides customized bracket dimensions, mounting configurations, and OEM manufacturing services to meet specific project requirements.

Strict Three-Stage Quality Control

Every Electric Drop-out Fuse is manufactured under a comprehensive quality management system that includes incoming material inspection (IQC), in-process quality control (IPQC), and full-function Factory Acceptance Testing (FAT) before shipment, ensuring consistent product quality and long-term reliability.

Typical Application Scenarios

Huajidian Electric Drop-out Fuses are widely used for:

• Rural overhead power distribution networks
• Pole-mounted distribution transformer protection
• Mining area overhead feeder protection
• Agricultural irrigation substations
• Solar photovoltaic overhead distribution systems
• Utility and EPC power distribution projects

Frequently Asked Questions

Q1: Can the Huajidian Electric Drop-out Fuse be used in coastal areas with high salt spray?

A: Yes. Polymer insulators with silicone rubber anti-pollution coatings are specifically designed for coastal environments with high humidity and salt spray, while porcelain insulators are available for inland and dry-climate applications. All metal fittings are hot-dip galvanized to provide excellent corrosion resistance and long service life.

Q2: What certification documents are available for Middle East market customs clearance?

A: Huajidian provides complete IEC 60265 type test reports, CE certification, and comprehensive export documentation. The company also supports customers with Saudi SABER registration, Indonesian SNI certification assistance, sample testing, and complete customs clearance documentation before shipment.

Q3: What warranty and spare parts support are provided?

A: Huajidian Electric Drop-out Fuses are backed by a 5-year global warranty. A full range of replacement fuse links is kept in stock, and complimentary spare fuses can be supplied according to order quantity, ensuring fast on-site maintenance and reduced equipment downtime.
